High Energy Density · Liquid Cooling · Enhanced Safety · Scalable Design

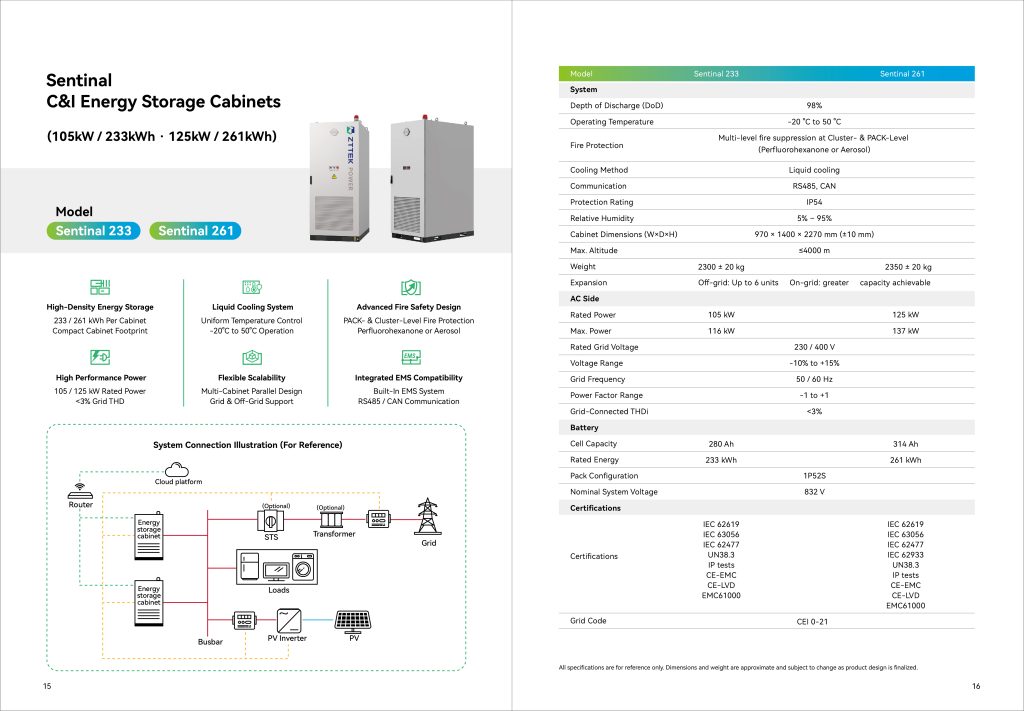

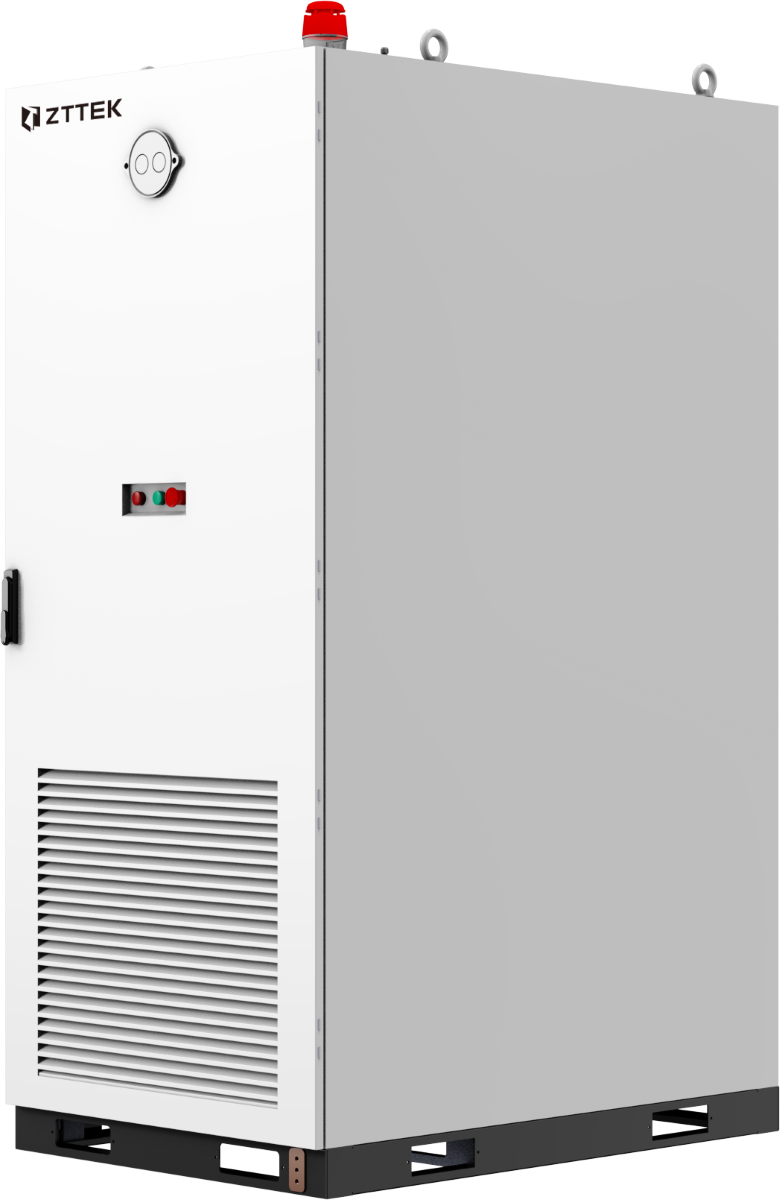

ZTTEK Sentinal C&I Energy Storage Cabinets are designed for commercial and industrial applications requiring reliable power management, flexible deployment, and long-term system stability.
The system is suitable for grid-connected, off-grid, and hybrid energy storage scenarios.
High Energy Density with Compact Cabinet Design
Sentinal C&I Energy Storage Cabinets integrates a high-capacity battery system within a compact cabinet footprint, enabling efficient use of installation space.
-
Available capacities: 233 kWh / 261 kWh
-

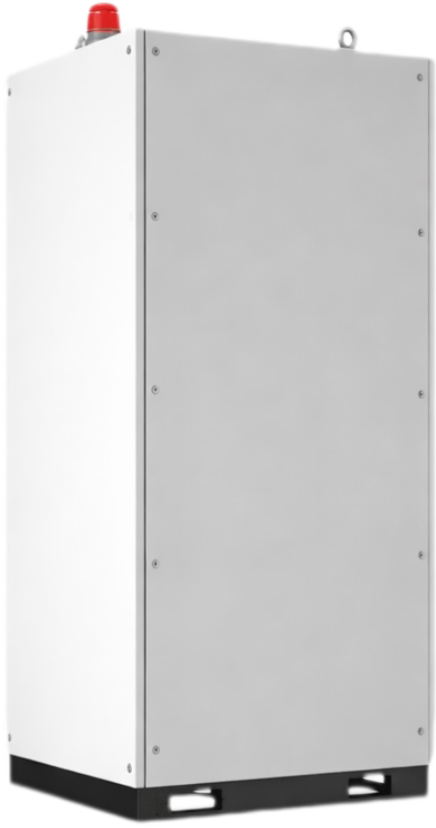

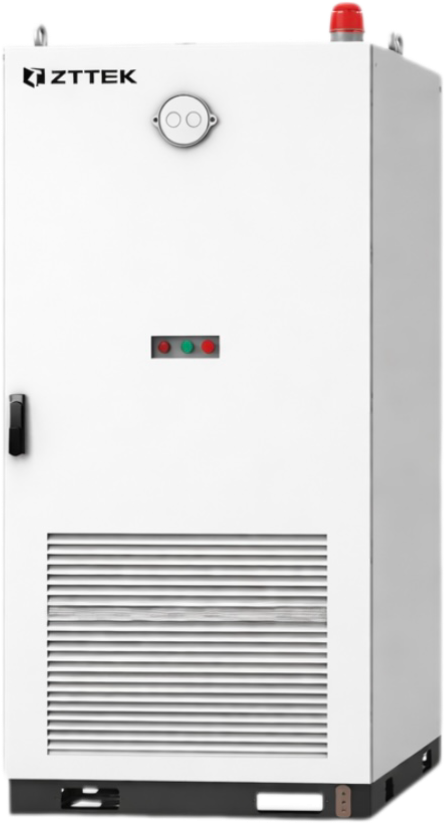

Compact cabinet dimensions: 970 × 1400 × 2270 mm (±10 mm)
-
Optimized internal layout improves volumetric energy density
-
Ideal for sites with limited available space

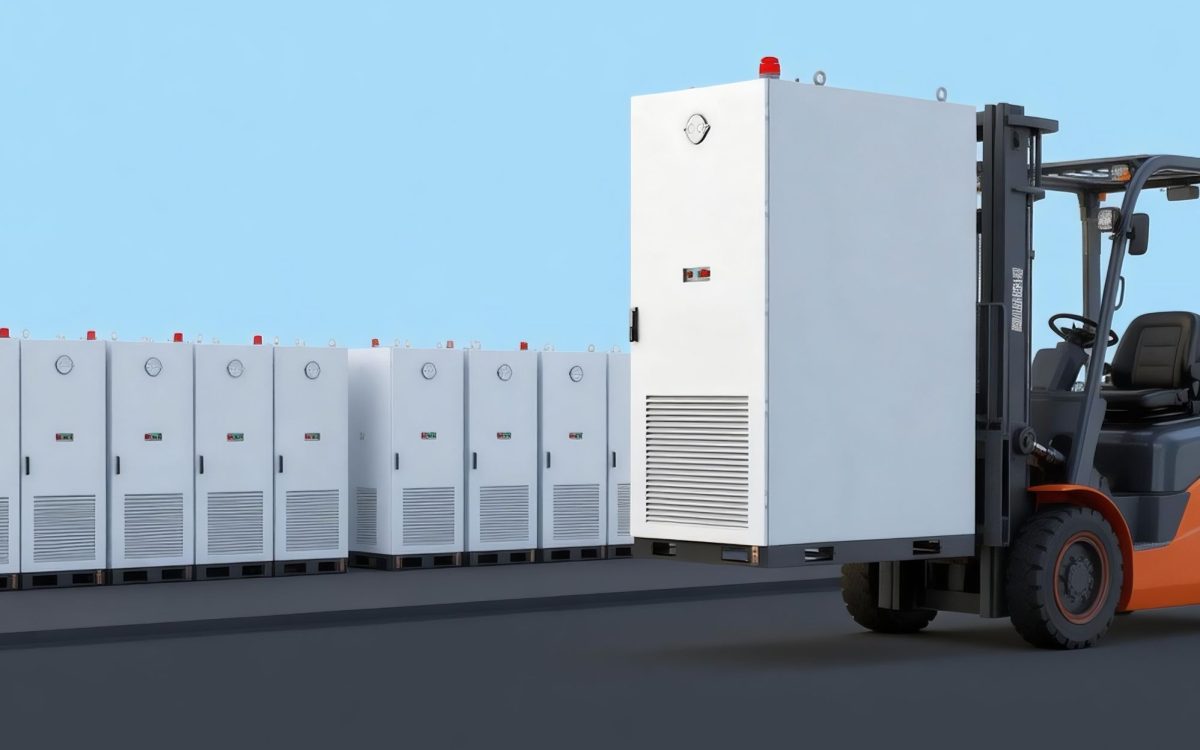

The design allows higher energy deployment per cabinet while maintaining convenient transportation and installation.
Liquid Cooling System for Stable Operation
The system adopts a liquid cooling architecture to maintain stable thermal conditions during long-term operation.
-
Uniform temperature control across battery packs
-
Reduced temperature fluctuation under continuous charge/discharge
-
Supports operation in ambient temperatures from -20°C to 50°C
Liquid cooling enhances system reliability and contributes to extended battery service life.
Advanced Fire Protection and Safety Design
Sentinal C&I Energy Storage Cabinets integrates a multi-layer safety concept designed for commercial and industrial use:
-
Multi-level fire suppression at Cluster- & PACK-Level (Perfluorohexanone or Aerosol)
-
Electrical and hydraulic systems physically separated to reduce failure risk
-
IP54 protection for outdoor and semi-outdoor environments
This comprehensive safety design supports stable operation throughout the system lifecycle.
High Performance Power Output
The cabinets support continuous and peak power output suitable for various C&I applications:
-
Continuous power: 105 kW / 125 kW
-
Peak power capability up to 116 kW / 137 kW
-
Rated grid voltage: 230 V / 400 V
-
Power factor range: -1 to 1
-
Grid-connected current THD: < 3%
The system ensures high-quality power delivery and grid compatibility.
Flexible System Scalability
Sentinal C&I Energy Storage Cabinets is designed for modular system expansion:
-

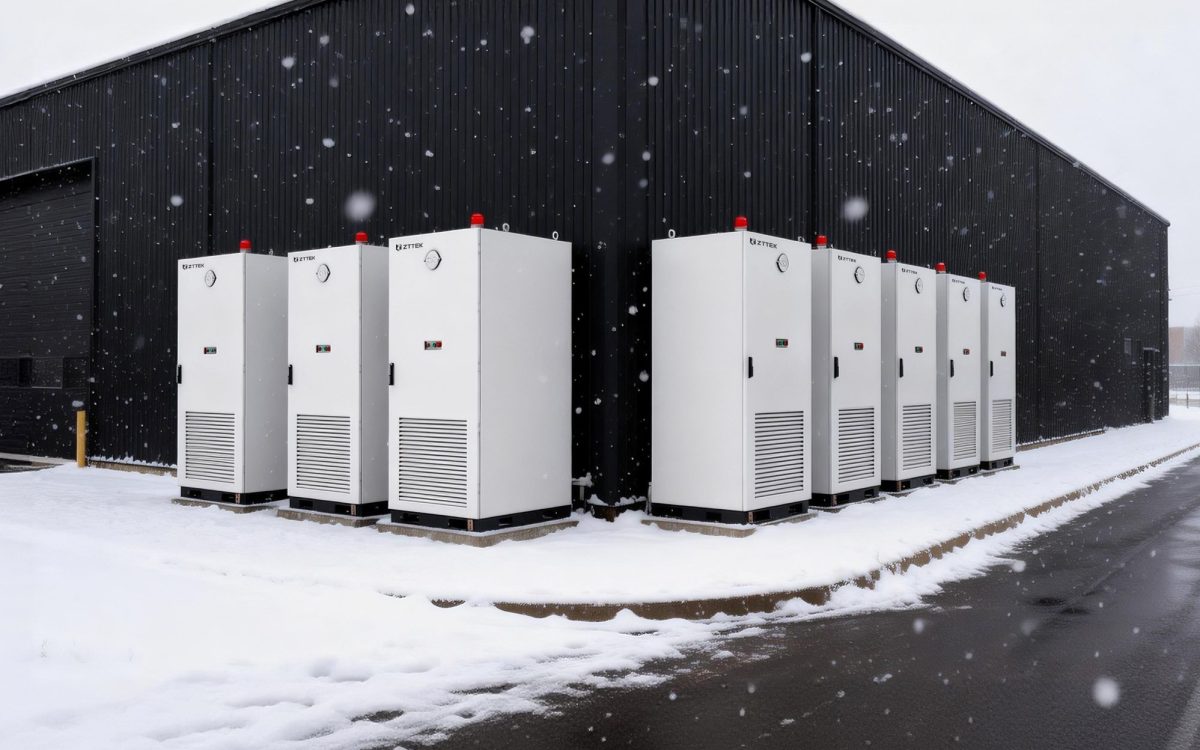

Supports multiple cabinets in parallel
-
Suitable for projects ranging from single-site installations to multi-cabinet energy systems
-
Compatible with both grid-connected and off-grid operation modes
This flexibility allows system capacity to grow with project requirements.
Integrated EMS with Third-Party EMS Compatibility
-
Built-in Energy Management System (EMS) for local control and operation management
-
Supports real-time system monitoring, data logging, and operating status visualization
-
Provides event recording and alarm functions for efficient operation and maintenance
-
Standard RS485 / CAN communication interface for system integration
-
Supports connection to and control by third-party EMS platforms
Designed for flexible system integration and simplified long-term O&M management.
Applications
Peak shaving & load management
PV self-consumption optimization
Battery arbitrage
Critical load backup

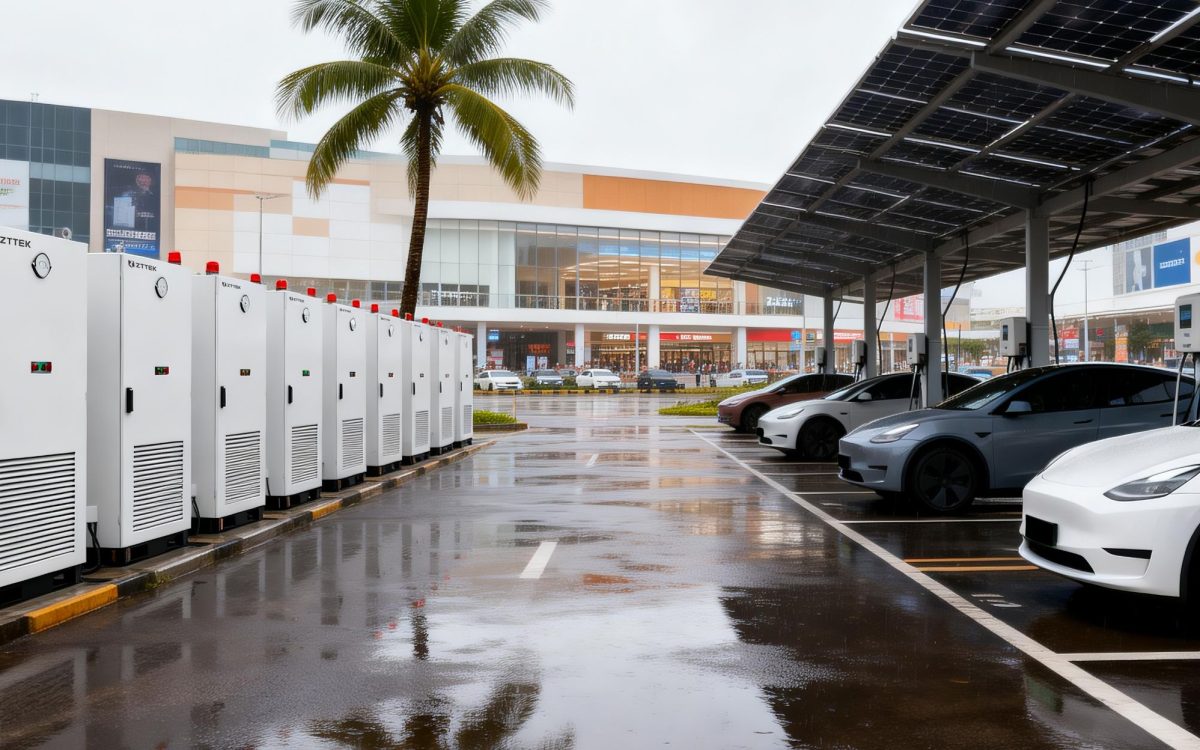

EV charging infrastructure
Microgrid & energy sharing
