Ultra-Compact Footprint · 98.2% Efficiency · UPS-Grade Reliability

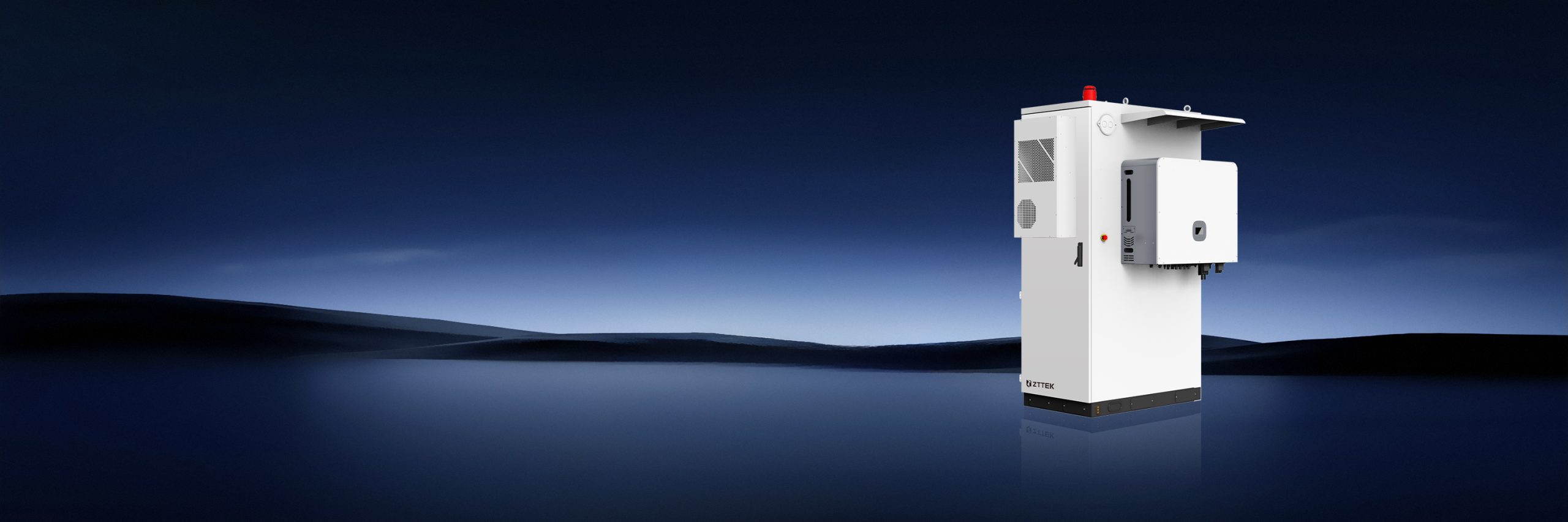

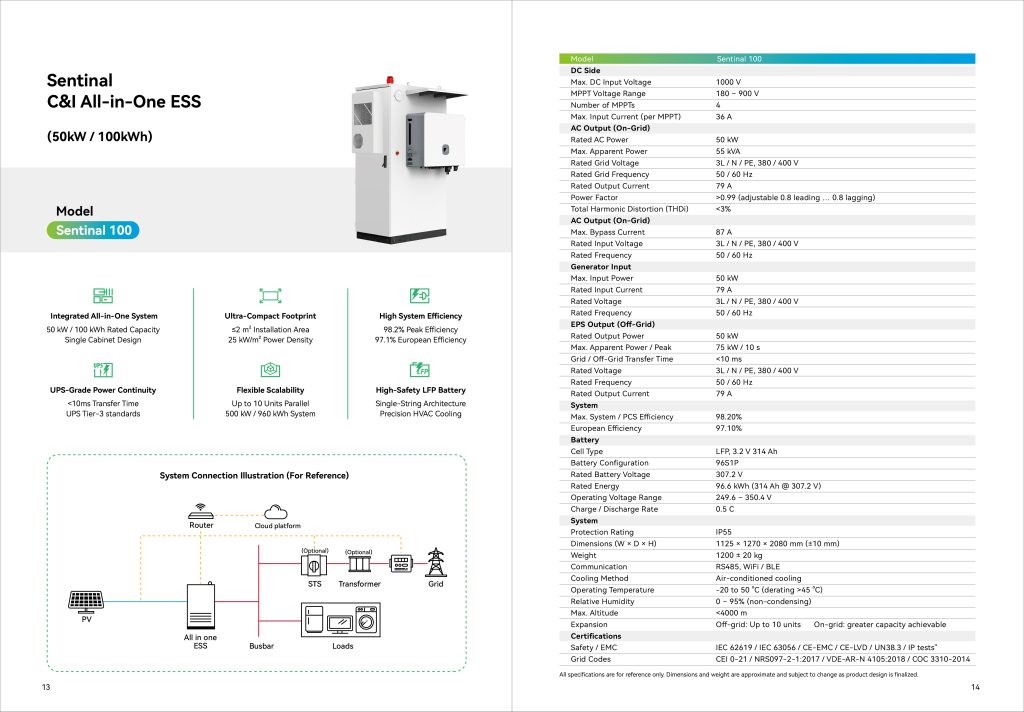

The ZTTEK Sentinal 100 C&I All-in-One ESS is a fully integrated Commercial & Industrial energy storage system designed for facilities requiring high reliability, small footprint, and superior energy efficiency.
Combining PV-storage-diesel hybrid inverter, battery, BMS, air cooling, and safety functions in a single cabinet, the system provides seamless support for factories, commercial buildings, data centers, telecom, and micro-grid deployments.
50% Smaller Footprint — Best-in-Class Spatial Efficiency (≤2 m²)
With an overall footprint of ≤ 2 m², the Sentinal 100 delivers the industry-leading power density of 25 kW/m², more than 2× higher than conventional C&I solutions.

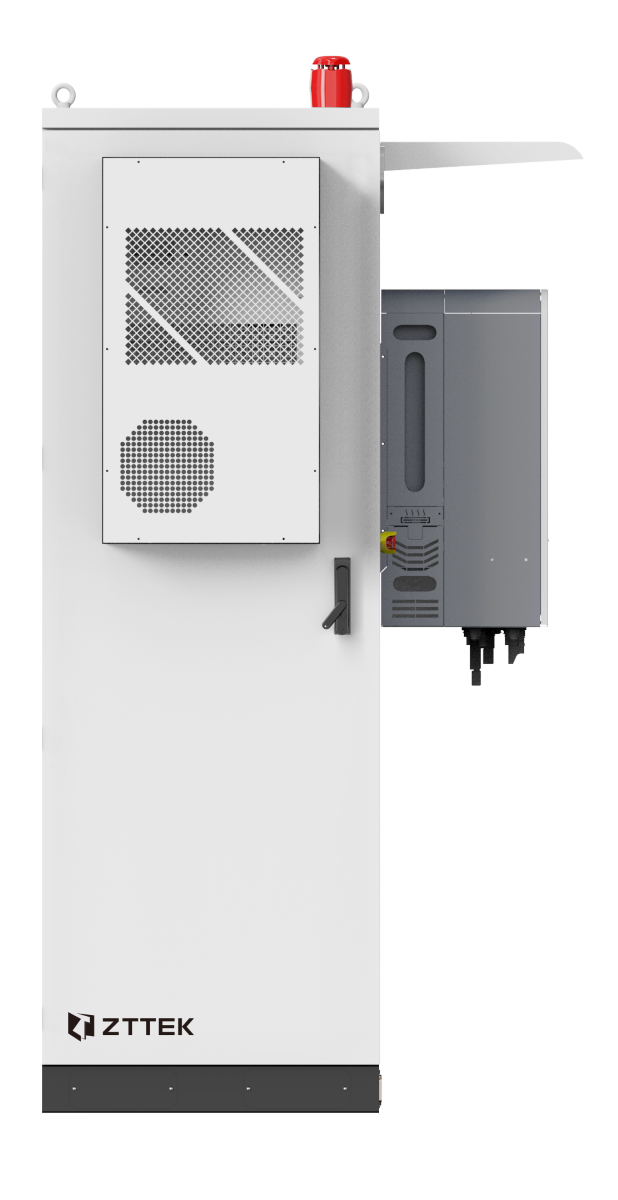

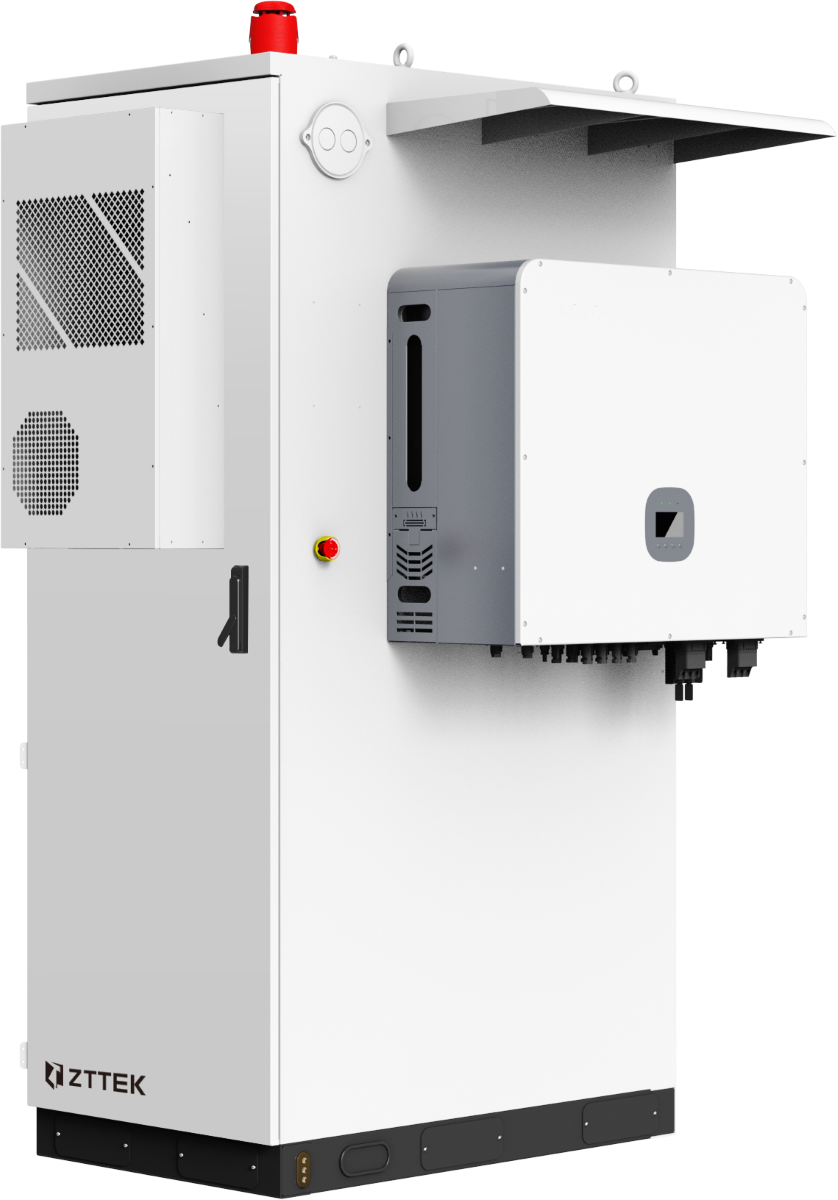

Key structural features:
-
Integrated battery rack and HVAC air-duct design
-
Side-mounted inverter configuration
-
Vertically stacked battery modules
Ideal for C&I sites with limited floor space but sufficient height clearance.
98.2% System Efficiency — Industry Leading
The system adopts a unified DC bus architecture that directly couples PV and battery power, eliminating multiple DC-AC-DC conversion cycles present in traditional systems.
Benefits:
-
Max. efficiency: 98.2%
-
European efficiency: 97.1%
-
Annual energy loss reduced by up to 37%, depending on usage scenarios
This significantly improves energy yield for self-consumption, peak-shaving, and DC-coupled PV applications.
UPS-Grade Power Continuity: <10ms Transfer Time
The advanced state-machine-based control algorithm enables seamless switching between grid and battery within <10 ms.
Advantages:
-
Prevents downtime of precision manufacturing equipment
-
Eliminates the risk of voltage sags
-
Meets UPS Tier-3 availability standards (99.999%)
With a short-time overload capacity of 75 kVA for 10 seconds, the system also supports motor-starting and surge-load scenarios.

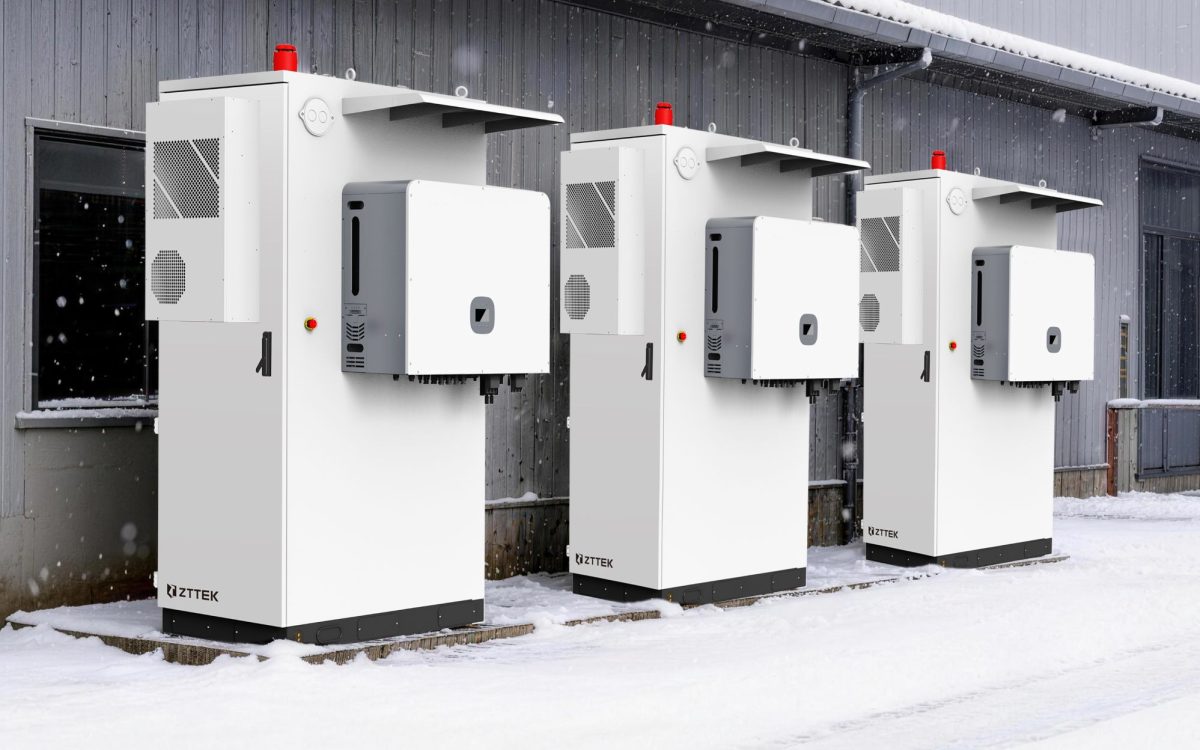

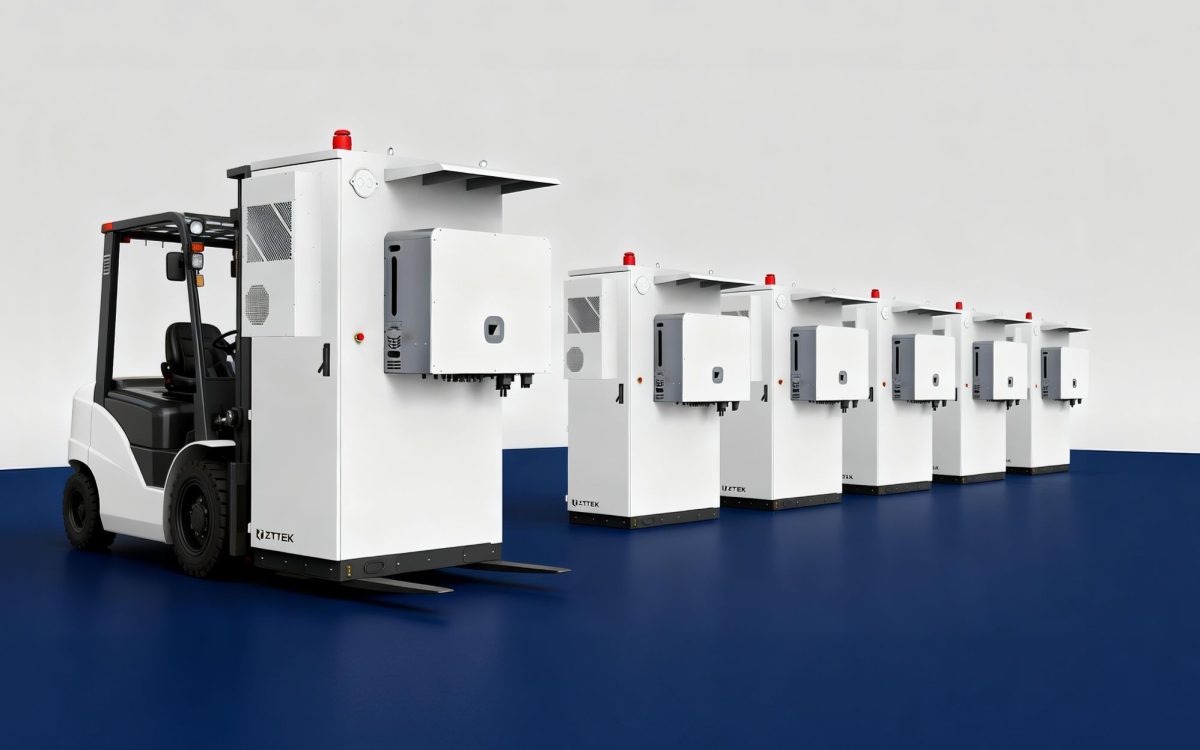

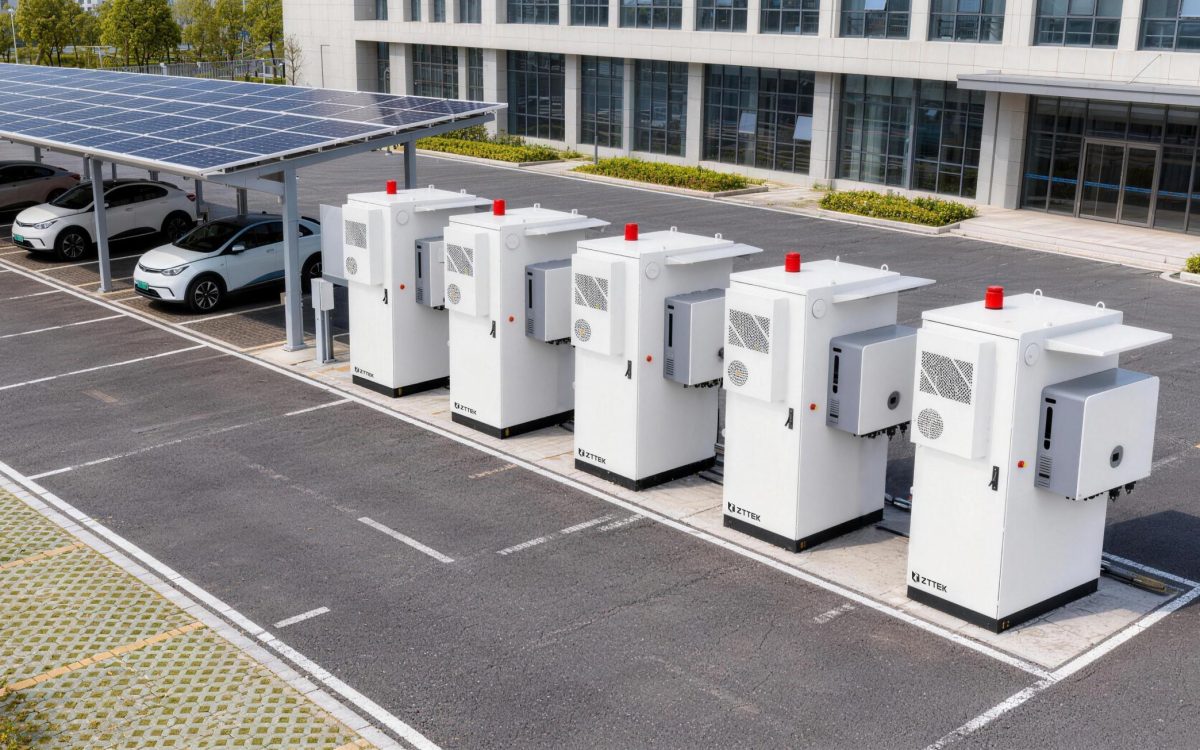

Flexible Scalability: Multi-Units in Parallel
Designed for evolving energy needs, the system supports:
-
Off-grid: Up to 10 units
-
On-grid: greater capacity achievable
-
New units can be added and commissioned in less than 60 minutes
This makes the Sentinal 100 ideal for growing businesses and multi-phase deployment projects.
High-Safety LFP Battery with Optimized Thermal Management
The battery uses 96S1P LFP cells (314Ah), ensuring maximum safety and stability.
Key safety features include:
-
Single-string architecture (no parallel cells) to eliminate imbalance risks
-
Precision HVAC cooling with dedicated air duct
-
High protection level: IP55
-
Full compliance with IEC 62109, IEC63056, CE, UN38.3 and major grid codes
Combined with an advanced thermal design, the system ensures stable operation even in harsh environments from -20°C to 50°C.
Open Communication & Smart Management
The system supports:
-
CAN / RS485 communication
-
Local and remote monitoring
-
Flexible energy management strategies
Designed for easy system integration and efficient operation.
Applications
-
Commercial building energy optimization
-

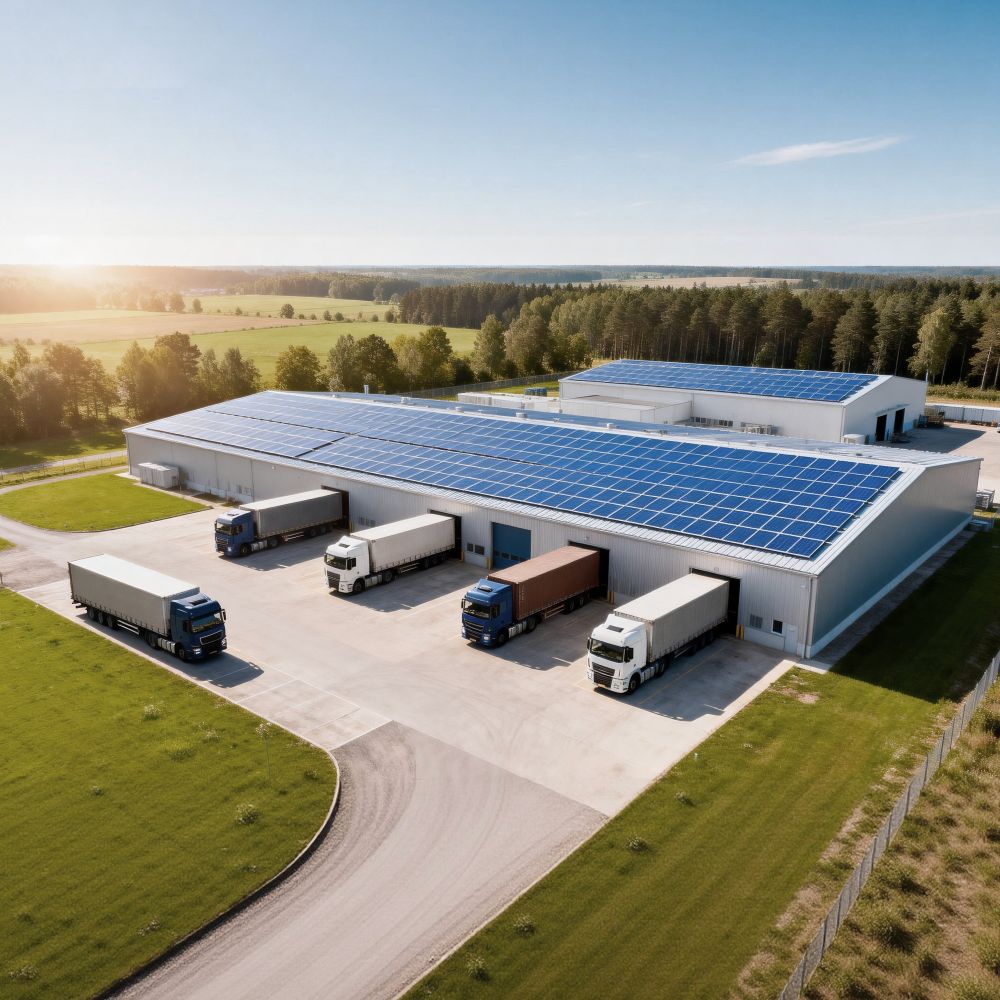

Factory peak shaving & load shifting
-

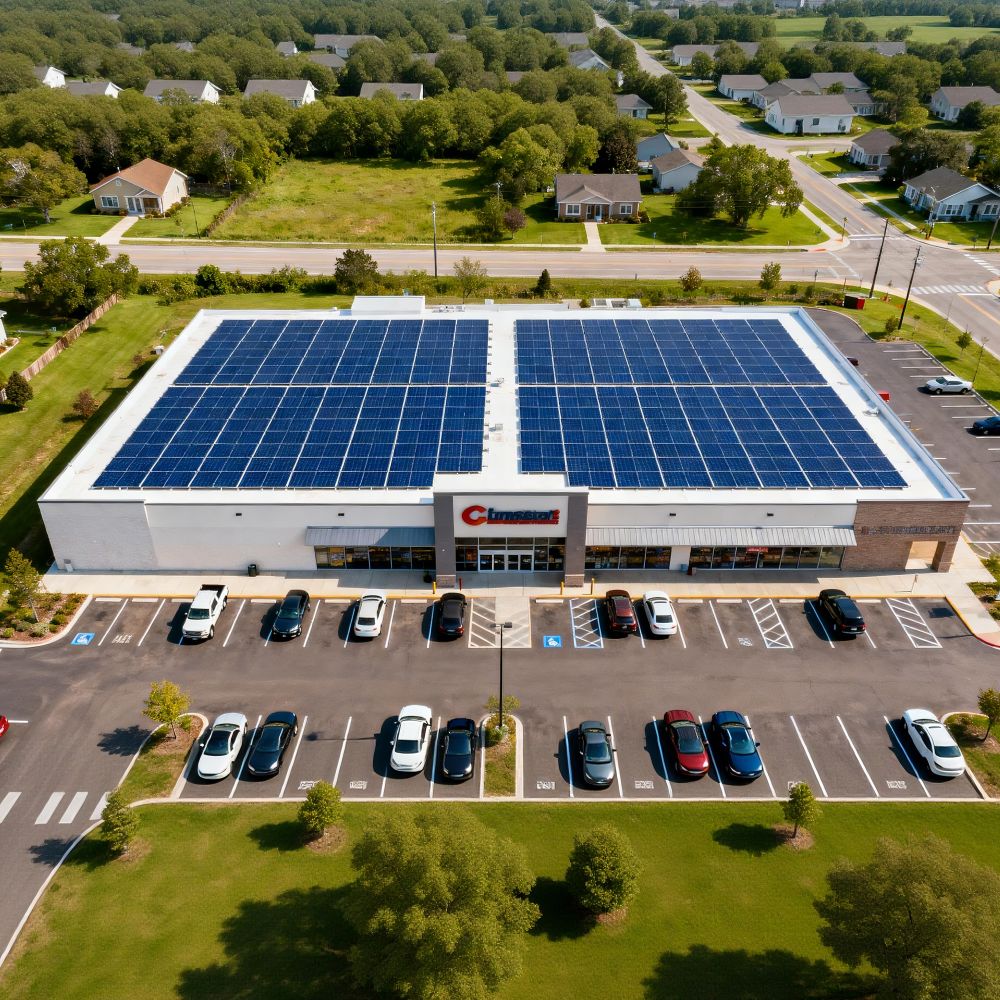

PV-coupled systems for retail & parks
-
UPS-grade industrial load protection
-

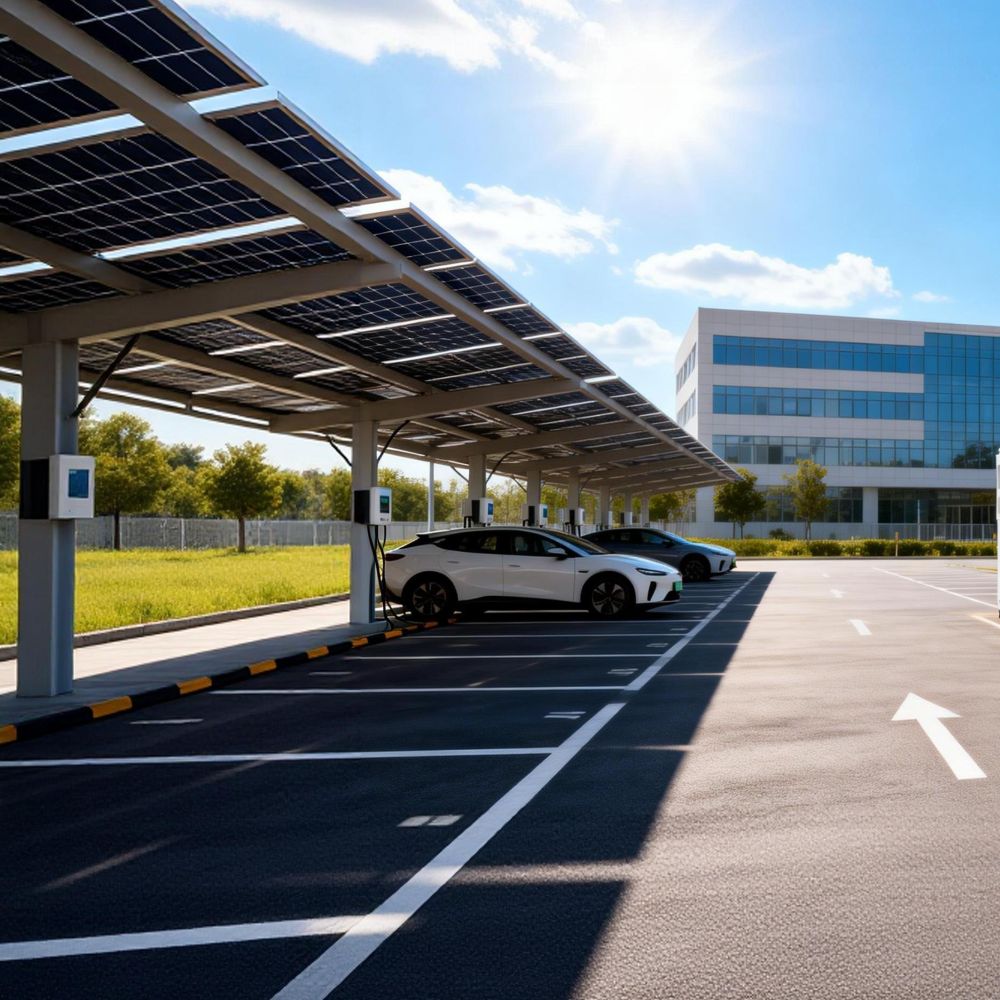

EV charging stations
-
Backup for medical/telecom/data center
-

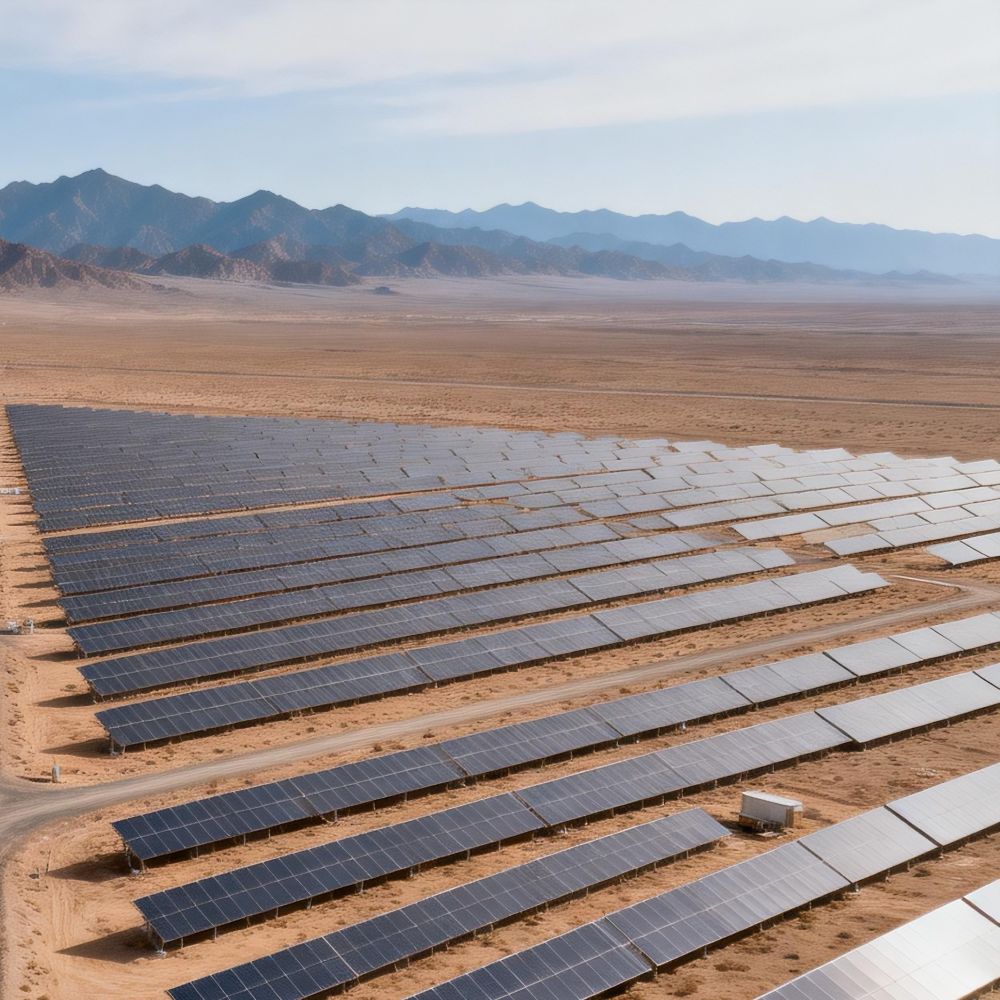

Remote microgrids
