Model: ZT-REES-LV-FS-16k-G1
Model: ZT-REES-LV-FS-16k-G2
For Flexible Microinverter Systems
A 16 kWh LFP low-voltage energy storage system with high-density 314Ah cells, simplified wiring, and flexible installation options for retrofit solar systems using microinverters or PV inverters.
16 kWh Single-Pack Capacity with High-Density 314Ah LFP Cells
-
Large-capacity, long-lifecycle LFP chemistry
-
6000 cycles @ 80% DOD
-
Ideal for high-consumption households and small commercial loads
High Power Capability for Demanding Loads
-
120A continuous charge/discharge
-
205A peak discharge support
-
Drives heavy-load appliances and commercial equipment smoothly.
Flexible Floor-Stand Installation
-
Compact footprint
-

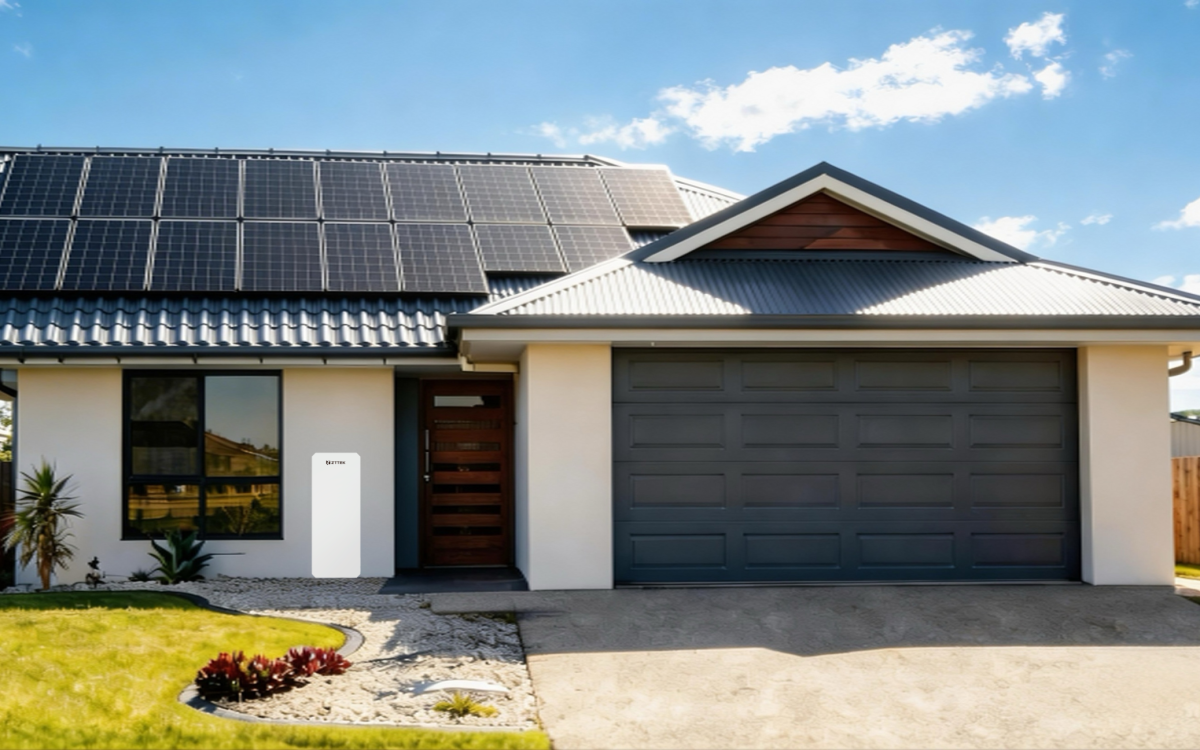

Fits garages, courtyards, equipment rooms and narrow spaces
-
Outdoor-ready enclosure with IP65 protection
-
Simplified wiring (power + communication) with quick-plug connectors
Designed for Retrofit Systems Using Microinverters / PV Inverters
-
RS485/CAN interface
-
Easy integration through simplified wiring
-
Compatible with mainstream microinverters & PV inverters via software matching
Wide Environmental Adaptability
-
Natural convection cooling
-
Broad operating temperature range (-20°C to 50°C)
-
Suitable for both indoor and outdoor deployment
Open Interoperability for Smart Energy Management
-
Works with our smart gateway hub for intelligent scheduling, load management, and advanced energy strategies
-
Supports integration with third-party EMS via RS485/CAN
-
Suitable for smart buildings, energy-sharing projects, VPP, and demand-side flexibility applications
Applications
